ECM Compact HX-2 PID Coffee Machine

Sale price
$7,999.00
Regular price
$8,500.00
You save
$501.00 (6%)
Tax included. Shipping calculated at checkout.

Frequently Bought Together
Di Pacci — Compact 2 Group PID Heat-Exchanger Commercial Espresso Machine

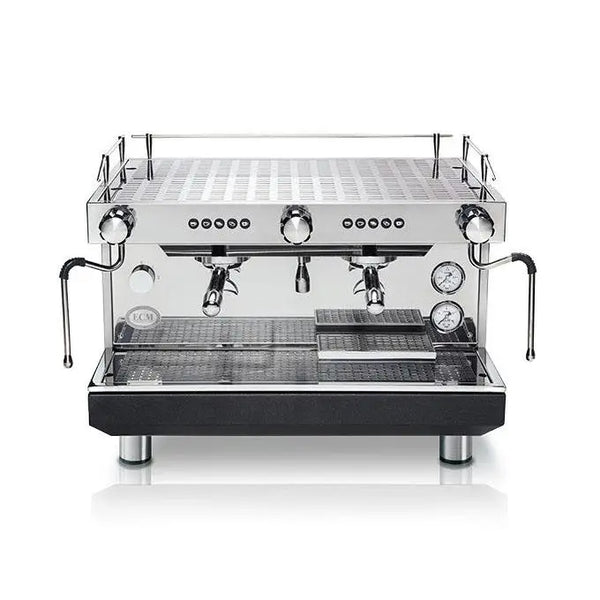

ECM Compact HX-2 PID Coffee Machine

The ECM Compact HX-2 PID puts two groups, a 9 litre insulated stainless boiler and PID control into a 650 mm wide stainless steel body for cafés short on bench space.

The ECM Compact HX-2 PID is a two-group heat-exchanger machine from ECM Manufacture in Germany. It has an insulated stainless steel boiler of about 9 litres with PID temperature control, a built-in rotary pump adjustable from underneath, and three programmable dose buttons plus a manual button on each group.

It's 650 mm wide and 510 mm deep, so it fits small cafés, offices and restaurants where a full-size 2 group won't. You also get switchable electronic pre-infusion, an automatic group cleaning program and dual pump and boiler gauges. It needs a commercial electrical connection and takes 25 to 30 minutes to heat up, so it's built to be left on through the day rather than switched on for a single coffee.

9 LInsulated stainless boiler
PIDTemperature control
650 mmWidth
3 + 1Programmable + manual doses
🌡️ PID Control 🔥 9 L Stainless Boiler 🔧 Rotary Pump 💧 Electronic Pre-Infusion 🧼 Auto Group Cleaning 📏 Compact 650 mm 🇩🇪 Built by ECM Germany ✅ In Stock — Australia
Best for: 🏪 Small cafés · 🏢 Offices and staff kitchens · 🍽️ Restaurants · 🚚 Compact coffee bars · 🔁 Steady daily volume
Free standard shipping Australia-wide on orders over $200. Standard shipping is $14.95 for orders below $200. Same-day dispatch for orders placed before 2PM, with secured, tracked delivery. Free commercial machine installation for Sydney metro areas.
All ECM Commercial Machines Finance Options Talk to an Expert — (02) 9758 0760

Key Features of the ECM Compact HX-2 PID

🌡️ PID temperature control

Holds boiler temperature steadily, so brew water stays consistent through busy periods.

🔥 Insulated 9 L stainless boiler

Stainless steel resists corrosion, and insulation cuts heat loss and energy use.

⌨️ Programmable dosing

Three programmable dose buttons and one manual button on each group.

💧 Switchable pre-infusion

Electronically controlled pre-infusion can be turned on to soften the start of each shot.

🧼 Automatic cleaning program

A built-in brew group cleaning cycle keeps backflushing simple.

📏 Compact footprint

650 mm wide and 510 mm deep, so two groups fit where space is tight.

Why a Compact 2 Group Makes Sense

Many small venues outgrow a single group but can't fit a 750 mm-plus commercial machine and its grinder on the bench.

  • The Compact HX-2 gives you two full-size ring groups in a 650 mm wide body.
  • Its 9 litre boiler supports two baristas, or one barista running two shots and steaming.
  • PID control and programmable doses keep shots consistent without a dedicated barista.

You get proper two-group throughput in a space where you'd otherwise have to settle for one group.

Complete Technical Specifications

Product Information
Brand ECM Manufacture (Germany)
Model Compact HX-2 PID
Finish Stainless steel
Warranty 12 months parts & labour via Di Pacci
Boiler & Groups
Boiler Approx. 9 L, stainless steel, insulated
System Heat exchanger
Temperature control PID
Groups 2 ring brew groups, compatible with ECM portafilters
Control
Dosing 3 programmable dose buttons and 1 manual button per group
Pre-infusion Switchable, electronically controlled
Cleaning Automatic brew group cleaning program
Gauges Pump and boiler pressure
Pump & Water
Pump Built-in rotary pump, adjustable from underneath
Water Plumbed mains connection
Physical & Power
Dimensions (W × D × H) 650 × 510 × 480 mm without portafilter
Weight 58 kg
Power 3,000 W
Heat-up time 25–30 minutes

ECM lists this model for a three-phase 230 V supply, with other voltages on request. Call us to confirm the connection for your site before ordering.

What's in the Box

  • ECM Compact HX-2 PID machine
  • 3 portafilters (1 single spout, 2 double spout)
  • Filter baskets
  • Operating manual

Water filtration and plumbing are quoted with installation.

Compact HX-2 vs Expobar EX3 2 Group

Two compact-ish 2 group options we install regularly.

Feature ECM Compact HX-2 PID Expobar EX3 2 Group
Width 650 mm 770 mm
Boiler Approx. 9 L stainless 11.5 L copper
Temperature PID PID
Weight 58 kg 62 kg
Built in Germany Spain

Di Pacci recommendation: Pick the Compact HX-2 when bench width is the constraint and you want German stainless build. Don't bother if you have room for a standard 2 group and want a bigger boiler for heavy milk volume; the Expobar EX3 2 Group is wider but carries more steam.

Grinders for the Compact HX-2

Keep the setup compact with a grinder that matches the footprint.

Grinder Burrs Why it pairs well
Quamar M80 E OD 63 mm flat Slim on-demand grinder that suits small benches
Mazzer Major V Electronic 83 mm flat For busier sites that need speed and dose control
Compak F10 Conic OD 68 mm conical Low-rpm conical burrs for a fuller-bodied blend

Browse the complete commercial grinder range for more options.

Who This Machine Is For

✓ Ideal if you:
  • Need two groups in a tight space
  • Run a small café, office or restaurant bar
  • Want PID stability and programmable doses
  • Like stainless steel, German-built equipment
  • Can plumb in and provide a commercial power supply
✗ Consider alternatives if you:
  • Need a lot of steam for a milk-heavy menu; see the Expobar EX3 2 Group
  • Only have a standard household power point
  • Want a home machine; see our ECM home range
  • Need takeaway-height groups as standard

ECM Compact HX-2 PID — Frequently Asked Questions

How big is the ECM Compact HX-2 PID?

It's 650 mm wide, 510 mm deep and 480 mm high without the portafilter, and weighs about 58 kg.

Does the ECM Compact HX-2 have PID?

Yes. Boiler temperature is PID controlled, which keeps brew temperature more stable than a pressurestat.

How many programmable doses does it have?

Each group has three programmable dose buttons and one manual button.

What power does the Compact HX-2 PID need?

ECM rates it at 3,000 W and lists it for a three-phase 230 V supply, with other voltages on request. Call (02) 9758 0760 and we'll confirm the right connection.

How long does the Compact HX-2 take to heat up?

ECM quotes 25 to 30 minutes from cold.

Do you install the ECM Compact HX-2?

Yes. Commercial installation is free in Sydney metro areas, and we can organise installers elsewhere.

Why Buy the ECM Compact HX-2 PID from Di Pacci

Genuine Australian stock of ECM equipment, an in-house service team with parts in stock, five showrooms (Sydney/Roselands, Melbourne, Perth, Port Macquarie, Queensland), in-store demonstrations, expert pairing advice, finance options, free shipping over $200, and a 12 month parts & labour warranty through Di Pacci. We install commercial machines free in Sydney metro areas. Di Pacci Coffee Co. has been in coffee since 2003.
