ECM S-Automatik 64 Coffee Grinder

Sale price
$1,790.00
Regular price
$1,899.00
You save
$109.00 (6%)
Tax included. Shipping calculated at checkout.
Color:
Polished Stainless Steel

Frequently Bought Together
Di Pacci — Home Coffee Grinders — ECM — 64mm Flat Burr — Designed Germany · Made Italy

ECM S-Automatik 64 Espresso Grinder

64mm Flat Stainless Burrs · 450W Motor · Stepless Worm Gear · Programmable 0.1s Dosing · LED Display · Vented Housing · Mirror Stainless Steel — Designed in Germany · Made in Italy

The ECM S-Automatik 64 is ECM's flagship prosumer espresso grinder — a compact, on-demand flat burr grinder with 64mm stainless steel burrs and a 450W motor that produces ~11g of ground coffee in approximately 2.5 seconds. Designed in Germany and handcrafted in Italy, it sits in the same performance tier as the Mazzer Mini Electronic and Ceado E6P, with a standout feature that separates it from both: a worm gear adjustment system that makes stepless grind calibration more precise, more controllable, and more stable than a standard collar-turn on competing grinders.

The LED display mirrors the style of ECM's PID espresso machine controllers — a design detail that makes the S-Automatik 64 a natural visual pairing for an ECM Technika or Synchronika. Single and double shot timers are programmable in 0.1 second increments for dose precision. An O-ring inside the grinding chamber prevents grounds from packing the adjustment threads — a practical engineering detail that keeps calibration reliable over thousands of cycles. The vented housing draws air through the motor for cooler operation, protecting bean integrity during extended grinding sessions.

⚙️ 64mm Flat Stainless Burrs ⚡ 450W Motor — 11g in ~2.5 Seconds 🎚️ Stepless Worm Gear Adjustment ⏱️ Programmable 0.1s Single + Double Dosing 🔘 Manual Grind Mode 💡 LED Display — ECM PID Style 🌬️ Vented Housing — Cool Operation 🇩🇪🇮🇹 Designed Germany · Made Italy
Best for: ☕ Prosumer Home Espresso  ·  🏆 ECM Machine Pairing  ·  🎯 Precise Grind Calibration  ·  🏠 Home + Light Office  ·  📈 Step-Up from Entry Grinder
Key Features
Burrs + Motor 64mm Flat Stainless Burrs · 450W Consistent flat burr grind at ~11g per 2.5 seconds — significantly faster than most home grinders at this price point

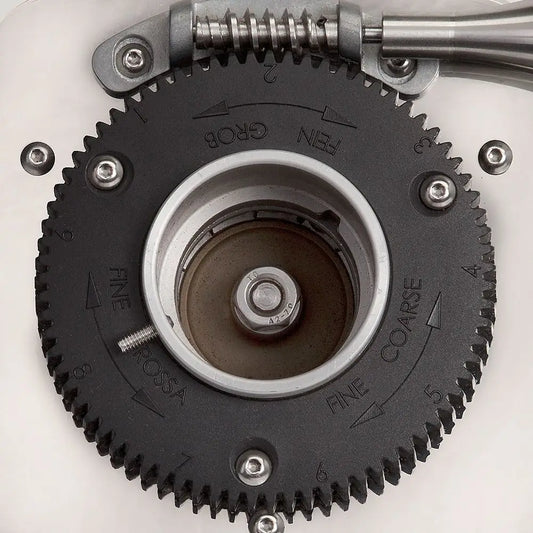

Worm Gear Adjustment Stepless Worm Gear — Precise, No Slip Micro-precise grind adjustment via worm gear key — settings lock in place without a screw, collar cannot slip back during grinding
O-Ring Seal O-Ring in Grinding Chamber — Clean Threads Seals the chamber from adjustment threads — prevents grounds packing, keeps calibration smooth and reliable over thousands of cycles
Dosing + Display Programmable 0.1s Dosing · LED Display Single and double shot timers in 0.1s increments. Manual mode available. LED display mirrors ECM's PID espresso machine style
Vented Housing Rear Vent — Cooler Operation Rear airflow vent reduces motor heat during extended grinding, protecting bean aroma and flavour integrity
Build + Design Mirror Stainless Steel — Low-Profile — ECM Match Polished SS 304 body, ~41cm tall — fits under standard overhead cabinets. Hopper has O-ring seal, set screw, sliding bean stopper
Full Features
64mm flat stainless steel burrs
450W motor — ~11g per 2.5 seconds
Stepless grind adjustment — worm gear key
Near-infinite grind settings — no slip, no lock screw
O-ring in grinding chamber — clean adjustment threads
Programmable single + double shot timers
0.1 second timer increments
Manual grind mode
LED display — ECM PID matched style
Vented housing — rear airflow, cooler operation
Portafilter fork — hands-free grinding
Grounds tray — spill catch
Bean hopper — O-ring seal, set screw, sliding stopper, snug lid
Mirror stainless steel 304 housing
Low-profile — fits under 18" overhead cabinets
Designed in Germany · Made in Italy
Technical Specifications
Burrs 64mm flat stainless steel
Motor 450W
Grind Speed ~11g per 2.5 seconds
Grind Adjustment Stepless — worm gear key — near-infinite settings
Chamber Seal O-ring in grinding chamber — prevents thread contamination
Dosing Programmable single + double shot timers — 0.1 second increments
Manual Mode Yes
Display LED — silver — matches ECM PID style
Ventilation Rear vented housing — cooler motor operation
Portafilter Fork Yes — hands-free grinding into portafilter
Housing Mirror polished stainless steel 304
Profile Low — fits under standard 18" overhead cabinets (~41cm)
Origin Designed in Germany · Handcrafted in Italy — ECM
Frequently Asked Questions

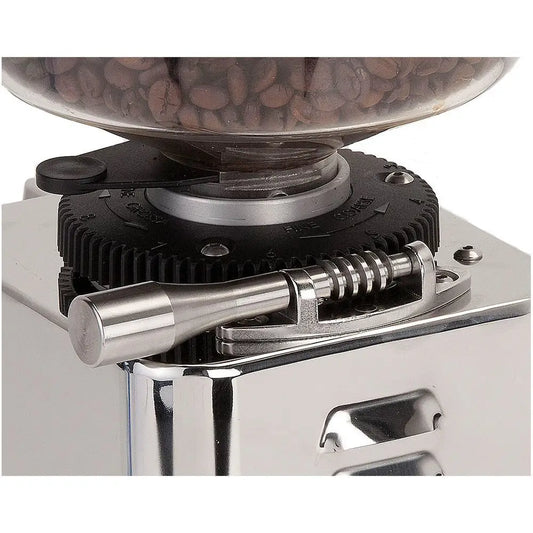

On most grinders, grind adjustment is made by turning a collar that directly moves the burrs. The problem is that collar settings can slip over time, and making very small precise adjustments is difficult because there's no mechanical advantage. The ECM's worm gear gives you a mechanical ratio — one full turn of the small worm gear shaft produces only one notch of collar movement. This makes micro-adjustments easy and intuitive. It also locks the setting in place: the worm gear can turn the collar, but force from the collar (such as from grinding vibration) cannot turn the worm gear back. No lock screw is needed, and your setting never slips.
The ECM S-Automatik 64 is designed as a natural companion to ECM's prosumer espresso machine range. The LED display's silver styling specifically matches the PID controllers on ECM machines such as the Technika V Profi PID, Synchronika, and Mechanika series. The grinder's 64mm flat burrs and 450W motor are well-matched to the extraction capability of these machines — it won't be the bottleneck in your setup. Di Pacci stocks both the grinder and the ECM machine range; call (02) 9758 0760 to discuss pairing options.
All three grinders use 64mm flat stainless burrs and stepless adjustment, and are considered the benchmark for prosumer on-demand espresso grinders at their price tier. The key differentiators: the ECM uses a worm gear for adjustment (more precise and slip-proof) versus the collar twist on the Mazzer and Ceado. The ECM's O-ring chamber seal is notably better than the Mazzer at preventing grounds fouling the adjustment threads. The ECM adjusts shot timers electronically in 0.1 second increments; the Ceado uses a screw. The ECM profile is the shortest of the three at ~41cm. All three are excellent performers — the choice often comes down to aesthetics, adjustment preference, and machine pairing.
Buy the ECM S-Automatik 64 All ECM Products Talk to an Expert — (02) 9758 0760
