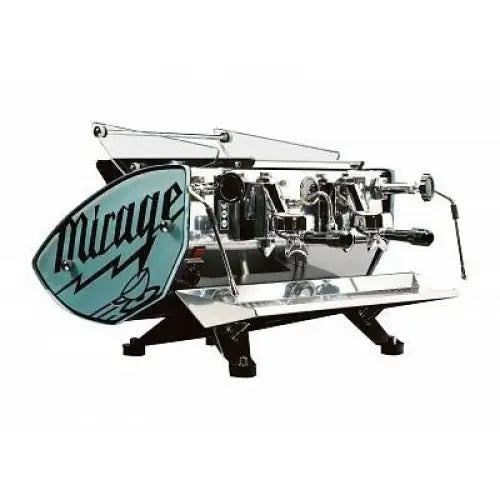

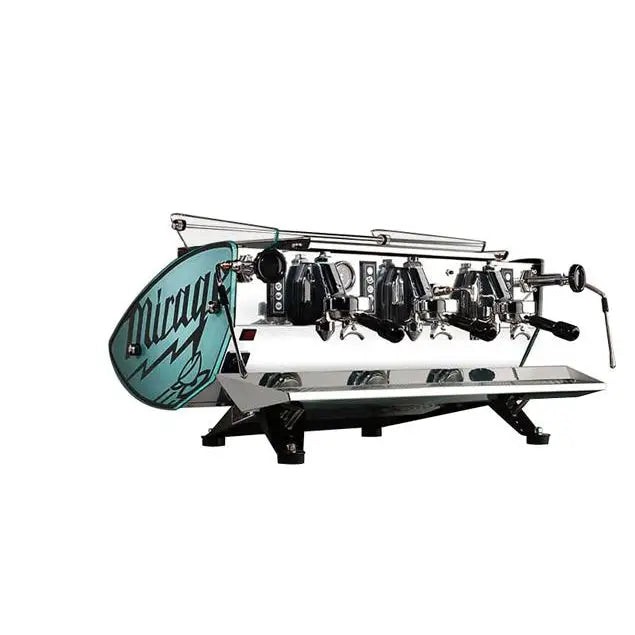

Kees Van Der Westen Mirage Coffee Machine

FEATURES

The Mirage`s heating system is based on the so-called thermo-syphon system. It consists of one large copper boiler (13ltr for the Duette, 19ltr for the Triplette), equipped with a heat-exchanger for each group, running vertically slanted across the boiler.

This HX is connected to the rear of the group by a thick tube running from top of HX to group and another tube running from rear of group to bottom of HX, completing a vertical circuit.

THERMO-SYPHON LOOP AT WORK

The water in the HX is heated by the hot water and steam surrounding the HX in the large boiler. This is an extremely quick  way to heat water, thanks to the massive energy in the 125 degrees C. steam boiler and the fast heat transferring capabilities of the copper. It is far more efficient than a heating element. The capacity of the HX therefore may remain relatively small. We use HX`s of 450cc per group.

Heat always wants to go up: the heated water becomes lighter and moves upwards. This flow of hot water leaves the HX, enters the thick tube attached to the top of the HX, then runs towards the group. The group is installed slightly higher than the top of the HX. The group is a massive piece of almost 4 kg of brass. Brass being a very good heat transferring material, soaks up heat from the water when this enters the 35cc chamber at the rear of the group.

The group becomes hot, the water losing much of its heat becoming heavier and starts to sink through the lower thick tube, running from rear of group to the bottom of the HX. Arriving there, the water re-enters the HX, heats up again and all starts anew. The temperature inside the HX is much higher than the normal operating temperature for the group. Capacity to heat the group is thus ensured very well.

This thermo-syphon loop, travelling up from HX to group, then returning to bottom of HX, is driven solely by the heat inside the large boiler. There is no pump or any other device. When the machine is on and at idle (no coffee being made), the thermo-syphon loop is flowing constantly all by itself. As heating the water inside a closed system also means pressure will rise, there is an expansion valve installed. This is adjusted at the workshop to start releasing drops at 11-12 bar. The group solenoid valve has a rating of 15 bar and may act as a secondary expansion valve for extra safety.

SYSTEM AT IDLE

The group sitting at the very end of the thermo-syphon loop is a vitally important stabilizing factor. It is after all the last part water travels through before hitting the coffee, during brewing. Its temperature therefore is important and should be very close to the desired temperature of the brewing water.
The temperature of the group body can be adjusted simply by having more or less hot water flow through its rear chamber. The temperature inside the HX being quite a bit higher than the desired temperature for the group, the thermo-syphon loop needs to slow down, needs to be restricted.
With the Mirage we adjust the boiler to 125 degrees Celsius. To get the group body temperature at low nineties we install a standard restrictor at the top of the HX with a passage of 1.5mm.

With different restrictors installed it is quite possible to operate one machine with temperatures adjusted differently from group to group, for example  to accommodate for the use of lighter and darker roasted coffees. As an option we offer adjustable restrictors.

One also may attempt to change the group temperature by changing the boiler temperature, but this method is limited because fairly large boiler temperature changes are needed  to realize just a little effect at the group. Also the steam or hot water capacity of the boiler may be affected that way. With the proper restrictor one can for example easily combine the extremes of 1.5 bar high steam power with a low 88 degrees C. brew temperature.

BREWING

The challenge of the thermo-syphon system is to get water of low nineties temperature to the coffee, provided by a HX that stores water at 125 degrees. The extra heat is needed to keep the group at its perfect temperature, the remaining heat is needed to deliver brewing water of the correct temperature. To start the brew process the group solenoid valve opens the path from the thermo-syphon system towards the coffee in the filter holder. At the same moment  the pump starts to run, keeping the pressure at a steady 9 bar, everywhere between pump and coffee.

The sudden exit, provided by the open solenoid valve, has a drastic result. All water will now flow to that exit, pushed out by the pump pressure. The flow in the lower tube changes direction, it flows upwards to the group, instead of downwards to the bottom of the HX. The flow in the upper tube remains the same. The crucially important second function of the restrictor now becomes clear. The flow through the upper tube towards the group is severely restricted by the1.5mm orifice of the restrictor. The lower tube does not have any restriction, it has an inside diameter of 8mm. This full-flow 8mm, compared to the 1.5mm, means 99% of the water reaching the group arrives via the lower tube.

This suits the requirements very well, since this lower tube contains the cooler water (generally 88-92 degrees, compared to the upper tube 115-125 degrees). To get the most out of this, we install a very long lower tube in the Mirage, containing 30cc. The remaining water comes directly from the HX. All water leaving the HX is replaced simultaneously by fresh cold water. The hot water leaves the HX through the lower tube, from bottom of HX. The cold water enters the HX also through the bottom. The cross flow of outgoing hot and incoming cold water is used to help each other. As there is just a 1mm copper wall between these 2 flows, the outgoing hot water is cooled down considerably, losing its heat to the incoming cold which starts to heat up right away. The cold water is forced to travel to the top of the HX via a long injection tube.

When leaving the top of the injection tube it needs to travel down again to the bottom of the HX, during brewing. This ensures the heating capability of the HX is used to its full capacity. Naturally, the cooling down of the water from HX to lower tube by the crossflow is not a very precise process, as the temperature of the cold water can vary because of climate, location, season, etc. It will however be a major drop to well below 100 C. Travelling upwards through the long lower tube offers a good start to further stabilise. When entering the big brass group body the temperature of the water will be easily stabilized to the correct temperature of the group.

To facilitate this temperature stabilization process we changed the insides of the group to increase the contact of water with the group body as much as possible. During brewing the water first passes the 35cc chamber in the rear of the group, then runs to the solenoid valve from where it re-enters the group. It fills the infusion chamber, passes through the passages towards dispersion fitting and finally is pressed through the group membrane- type screen.

The stabilizing ability of the mass of 4kg brass is impressive. Even after taking a bucket of hot water from the main boiler, causing this to cool down for a short while during re-filling with cold water, the energy stored within the brass ensures enough shots of the correct temperature to allow the boiler to regain its standard temperature. When starting a shot, we recommend to draw a short flush: 30-45cc. Never flush more, because the water runs much faster through the entire system during a flush. When flushing longer the inherent stability of the system can easily be ruined, requiring at least 5 minutes to completely restore.
