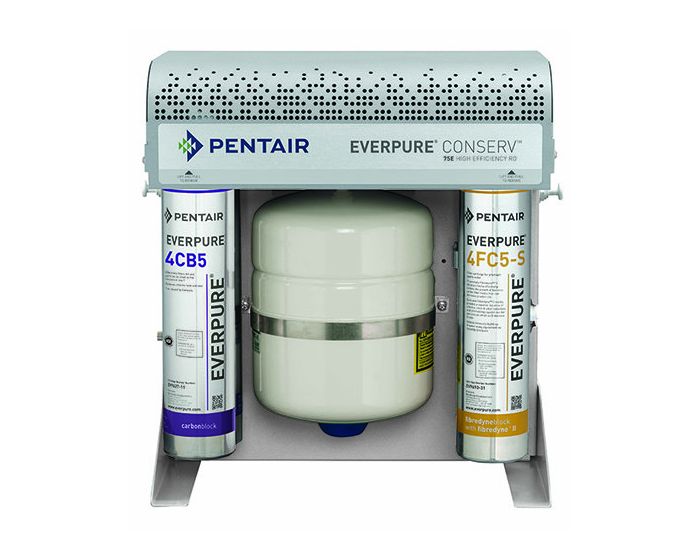

Pentair Everpure 75E RO System(EV997703)

The Everpure 75E High Efficiency Reverse Osmosis System is employed for the brewing of espresso and low-volume coffee. This RO system is also known as EV9977-00, EV9977-01, EV9977-02, and EV9977-03.

Applications:

Low-volume applications for espresso and coffee
The Everpure Conserv 75E High Efficiency Reverse Osmosis System is specifically engineered for espresso and combination applications, including espresso machines and ice makers.

The system includes the following:

Pre treatment carbon filter (4FC5)
High efficiency RO Membrane Cartridge GRO-75EN
Storage reservoir for RO water onboard
4CC Post Treatment Calcite Feeder
Blending valve to maintain the mineral content of the effluent in the water
4CB5 Post Carbon Filter Cartridge
This RO system enables the creation of a customized blend that produces the optimal mineral content for your preferred espresso flavor. The blending valve ensures that the water contains the appropriate balance of minerals to reduce scale and corrosion, thereby extending the lifespan of the apparatus. Its diminutive design enables it to be affixed to the wall, countertop, or beneath your bench.

This system safeguards against contaminants that influence the flavor and odor of your water and coffee beverages, while simultaneously eliminating dirt, particulates, and undesirable dissolved minerals.

Specifications:
The daily production rate is 191.20 liters per day.
Service Flow Rate: 50-85 psi
Dimensions: 47.5cm x 43.1cm x 26cm in total
Inlet Connection: 3/8 inch OD Outlet Connection: 3/8 OD inch John Guest fitting John Guest fitting Wastewater line connection: 1/4 OD inch John Guest fitting Operating pressure requirements: 40-85 psi, non-shock
The maximum operating pressure is 125 psi or 8.6 bar.
Inlet Temperature: 0-37.7 degrees Celsius
Inlet TDS: Maximum of 1,000 ppm.
Operating Weight: 24.04 kg
Wastewater Production: 53-75 liters per day at a pressure of 414 kPa and a temperature of 25 degrees Celsius
Wastewater Drain Line Capacity: 0.05 gpm (200 ml/m) to open atmosphere Storage Tank Capacity: 3.8 liters

Tips for Instillation:

The compact design enables installation on a wall, countertop, or beneath a settee.
The process of replacing a cartridge is straightforward, efficient, and sanitary.
Select a mounting location that is capable of accommodating the entire system's weight.
Allow a clearance of 6.4 cm below the cartridge to facilitate cartridge replacement.
With the cartridges dangling down, install them vertically.
Before applying the apparatus, delime it.
Every 12 months, it is necessary to replace all cartridges and RO membranes.

New Products:12-24 Months

Used Products:3 Months

All of our products include 3-12 Months Warranty for parts, non consumable.
